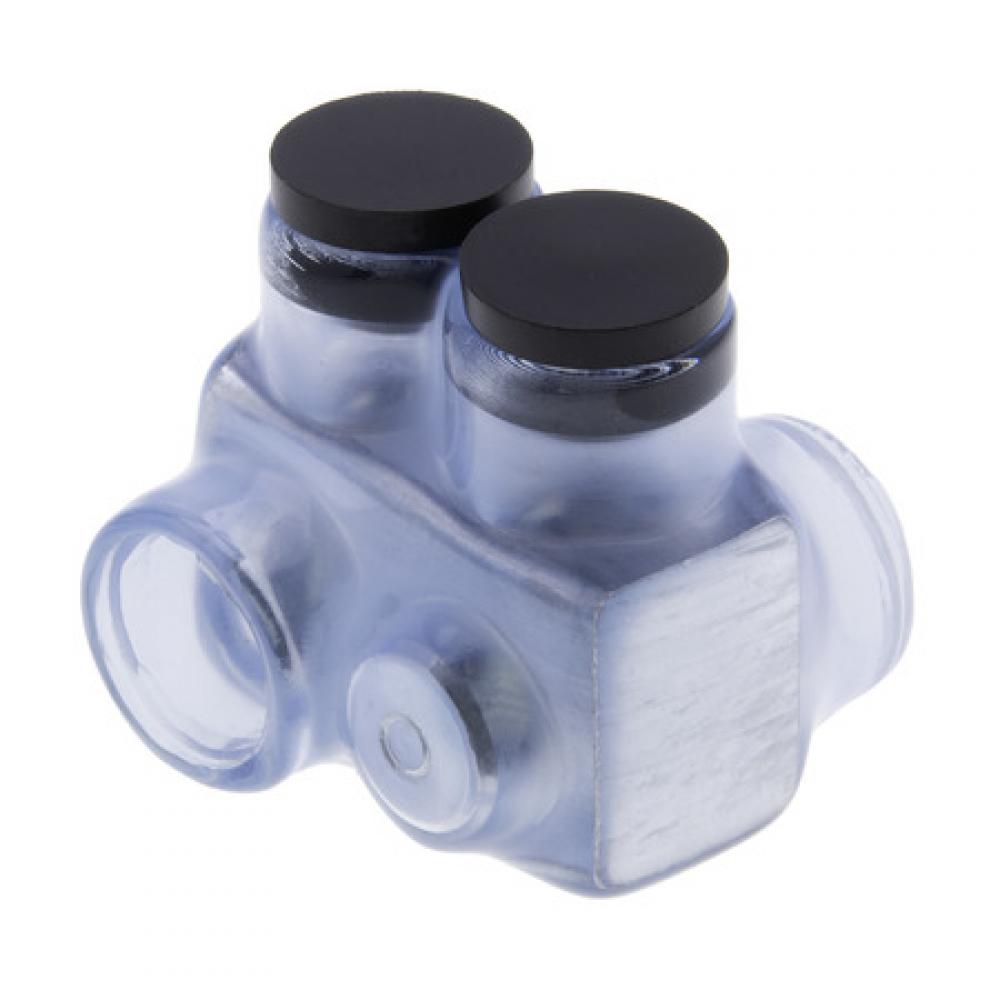

The Polaris ITO-3/0C Multi-Tap Offset Dual-Side Entry Vision Tap Connector features 2 ports sized for 3/0 - 6 AWG wires. The clear body allows users to see their conductor placement and is wrapped in a layer of plastisol insulation. Each port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.

Specifications

Details

Electrical Category:

Lugs Plugs And Connectors

Electrical Subcategory:

Connectors And Accessories

Application:

Wire Termination

Brand Name:

NSI

Color:

Clear

Country Of Origin:

USA

Enclosure:

Clear Plastisol

Environmental Conditions:

Dry Location Only

Finish:

Plastisol

Length:

1.8400 IN

Material:

Plastisol

Number Of Conductors:

Number Of Poles:

Order Minimum:

1.000 EA

Order Multiple:

1.000 EA

RoHS Compliance:

Yes

Size:

L=1.840 - W=1.870 - H=1.870

Spec Sheet:

Spec Link

Special Features:

(2) 3/0-6 AWG - Dual Rated - Offset Ports

Standard:

cULus

Stock Type:

Shelf Stock

Sub Brand:

Polaris Vision Tap

Temperature Rating:

Type:

Offset Entry

UNSPSC:

39121409

Voltage Rating:

600

Weight:

.190 L

Wire Size:

3/0-6 AWG

Wire Type:

Class B & C
