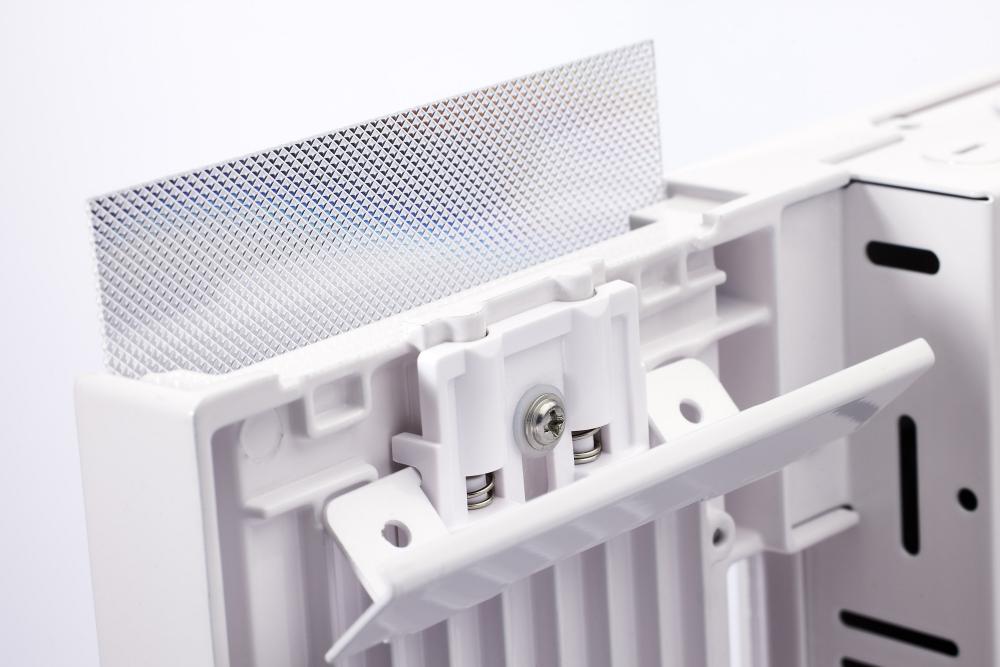

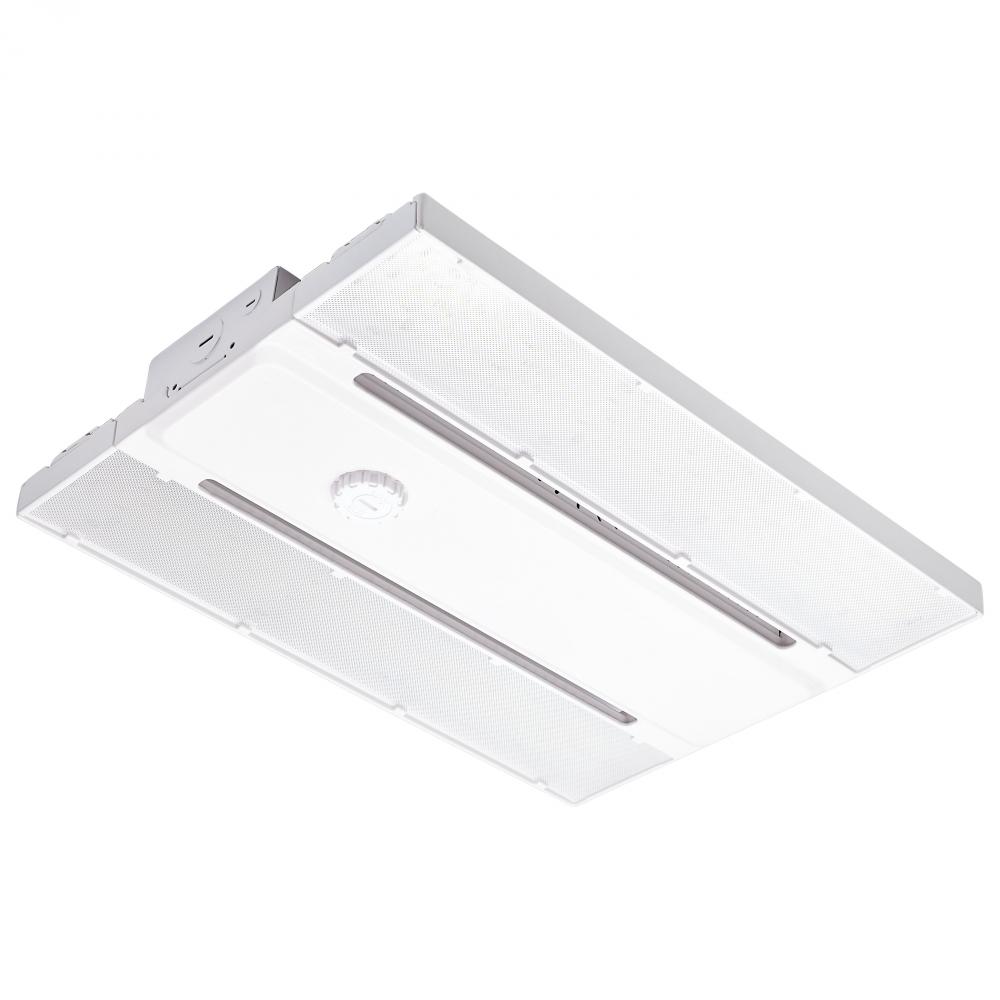

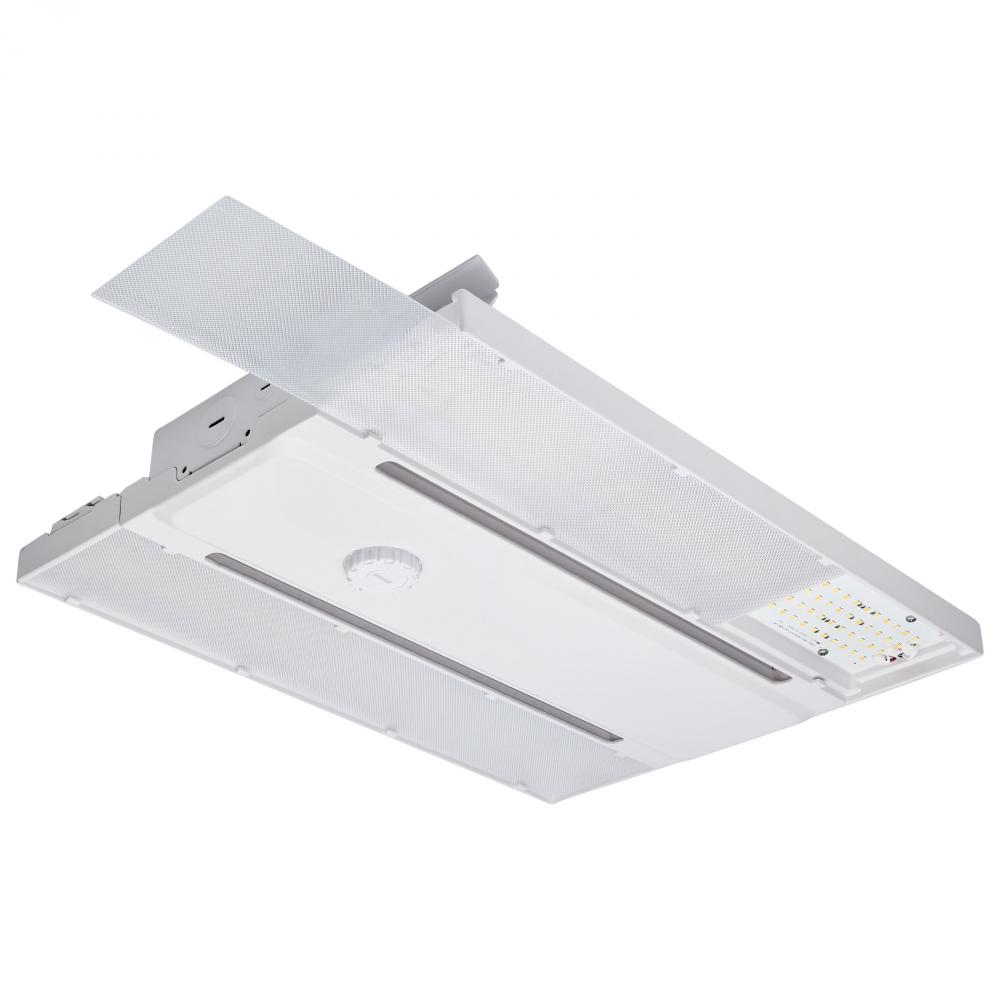

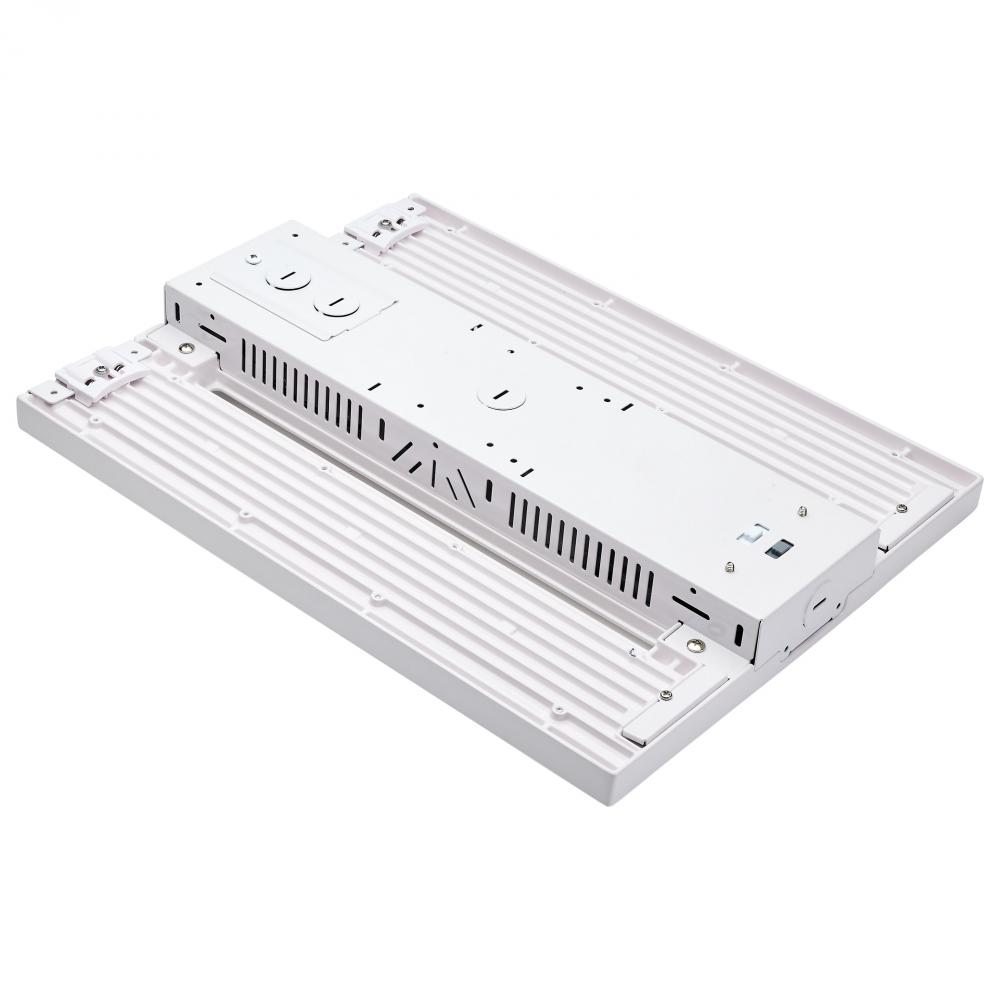

LED Linear High-Bay With Interchangeable Lens; 110W/130W/155W Wattage Selectable; 3K/4K/5K CCT

LED Linear High-Bay With Interchangeable Lens; 110W/130W/155W Wattage Selectable; 3K/4K/5K CCT

$
138
00
/ 1
  • Part Number: A9ET2
  • UPC: 00045923657283
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
LED Linear High-Bay With Interchangeable Lens; 110W/130W/155W Wattage Selectable; 3K/4K/5K CCT Selectable
Specifications
Details
Category:
Utility
Subcategory:
Other Utility
Option:
LED
Prop 65 /vendors/vendorImages prop65.png
Finish:
White /vendors/vendorImages white.jpg
Category:
Hi-Bay
Sub Category:
Linear
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Soft White to Natural Light
Dimmable:
Yes-Dimmable
Each Height:
2.95
Each Length:
14.96
Each Width:
11.81
Length:
14.17
Lumens:
15655L-21714L
Tariff Code:
9405.11.6020
Warranty:
5 Year Limited - Fixtures
Amps:
0.917-0.397/1.083-0.469/1.292-0.560A
ANSI Base:
Integrated
Beam Angle:
90x90
CA Prop-65:
Lead

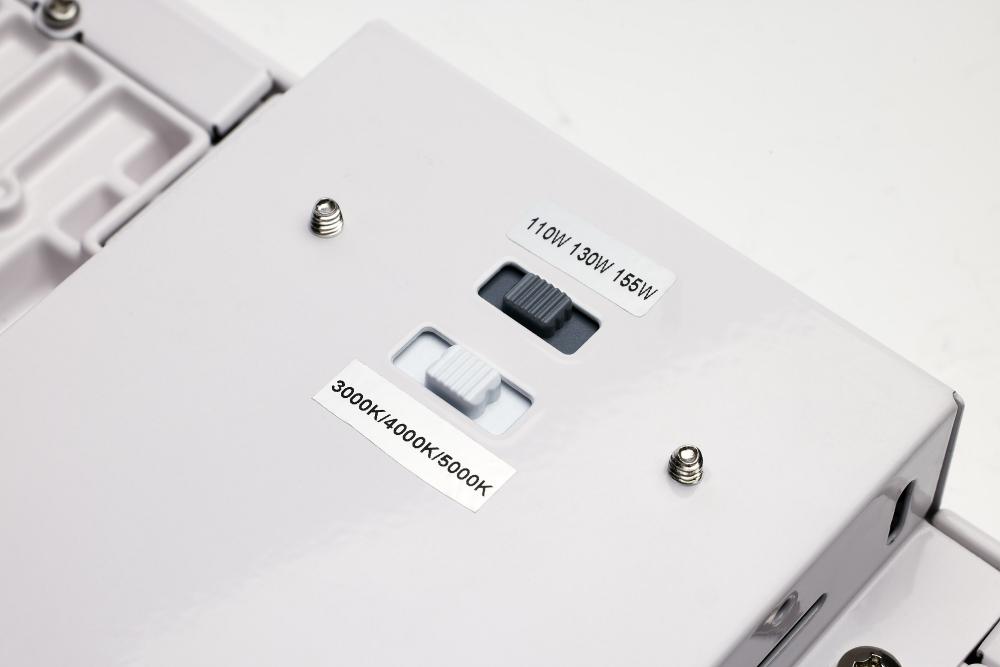

CCT Selectable:
Yes
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Country Of Origin:
Vietnam
CRI:
80+
Dimmable Down To:
100 to 10 percent
Dimmable Function:
0-10V Dimming
DLC Classification:
Premium
DLC Primary Use:
High-Bay Luminaires for Commercial and Industrial Buildings
Each Cube:
0.3016
Each Quantity:
1
Efficacy:
142.32/143.73/140.10 LPW
FCC Compliant:
Yes
Feature 1:
CCT and Wattage Selectable
Feature 2:
Flicker Free Driver
Feature 3:

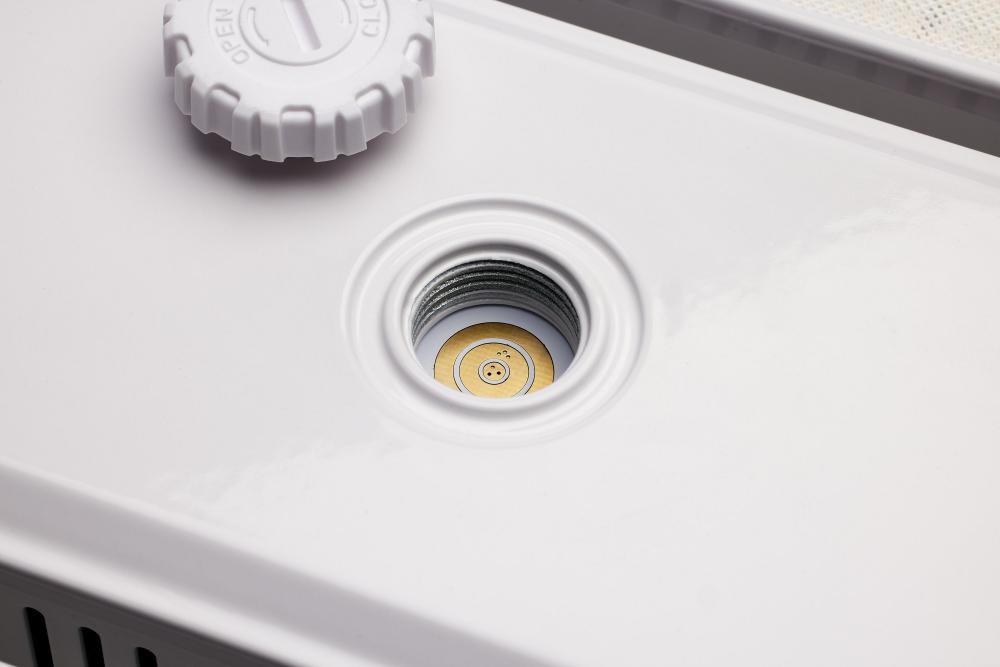

Integrated Sensor Port
Feature 4:
41-inch Suspension Kit Included
Feature 5:
6kV Surge Protection
Feature 6:
5 Year Warranty
Feature 7:
White Finish
Finish Family:
White
Flr Equiv:
225W-315W
Has Driver:
Yes
HID Equiv:
300W
Housing Color:
White
Includes:
41 Inch Suspension Kit
Indoor Outdoor:
Indoor
IP Rating:
IP20
JA8 Compliant:
No

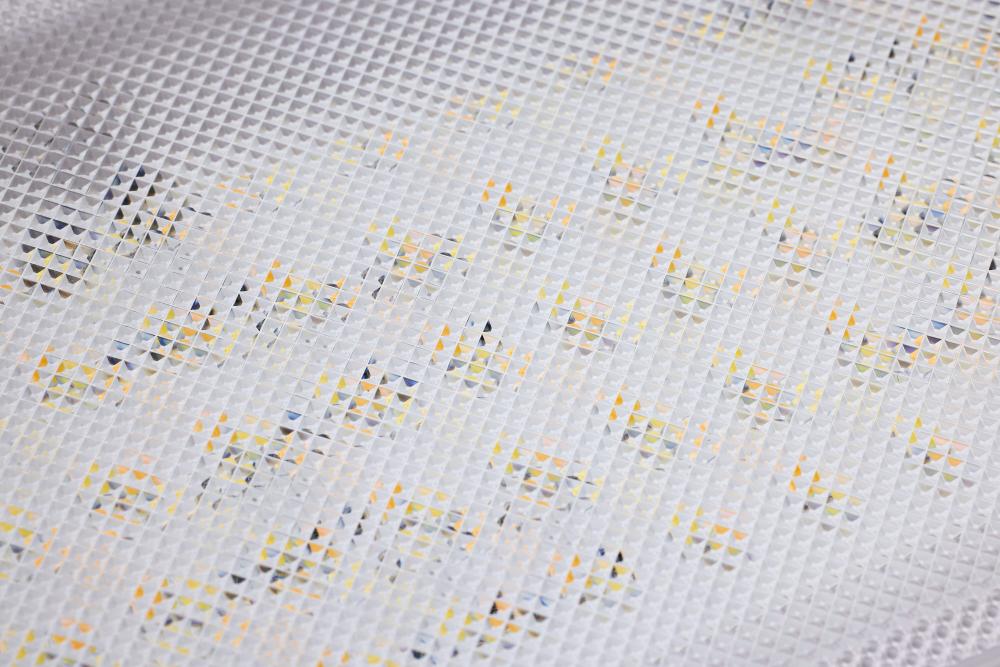

Lens Material:
Polycarbonate (PC)
Long Description:

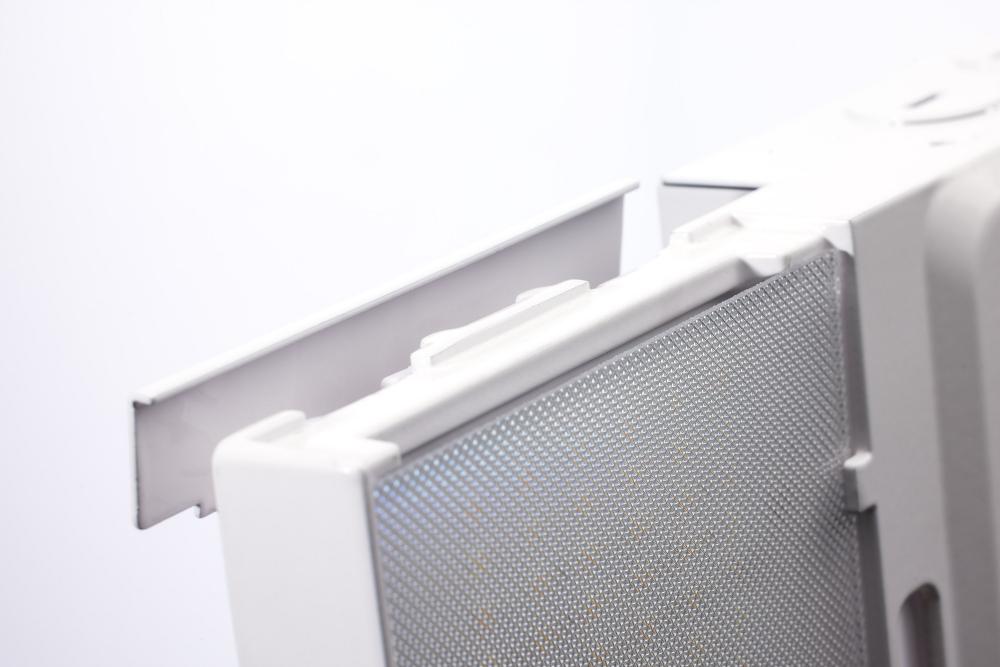

Introducing SATCO NUVO's versatile High Bay Fixture, designed for ultimate lighting adaptability. Our field selectable fixture comes with interchangeable optical lenses, offering unparalleled flexibility to meet various lighting requirements. The inclu
Material:
Die-Cast Aluminum
Mounting Procedure:
Surface/Suspension: Mounting Bracket/Cables/Chain
Operating Frequency:
50/60Hz
Operating Temp:
-40C (-40F) to +55C (+131F)
Order In Multiples Of:
1
Pack Type:
Brown Box
Power Factor:
>0.9
Quantity In Pack:
1
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
Introducing SATCO NUVO's versatile High Bay Fixtures, designed for ultimate lighting adaptability. Our field selectable fixtures comes with interchangeable optical lenses, offering unparalleled flexibility to meet various lighting requirements. The inc
Safety Listing:
cULus - Certified
SDS class:
LED_Fixture
Short Description:
LED SELECTABLE LINEAR HIGH BAY
Temperature (CCT):
3000K/4000K/5000K
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Total Harmonic Distortion:
<20%
Wattage Selectable:
Yes
Weight Lb.:
5.07
