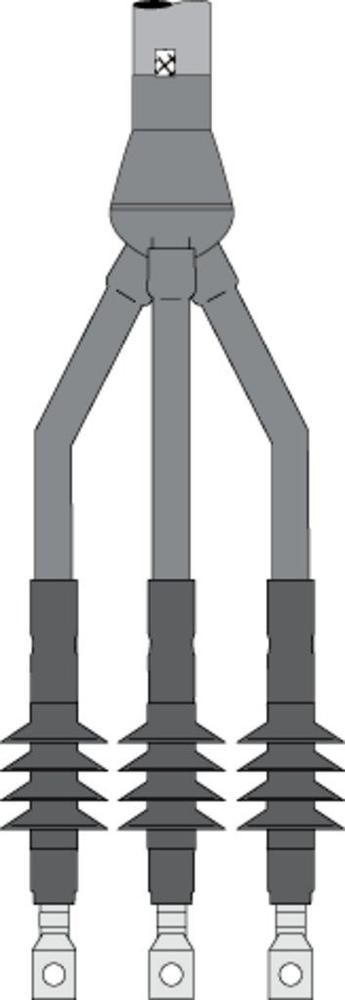

3M™ Cold Shrink QT III 7620 S & 7690 S Series Inverted Termination Kit includes 3 single conductor, skirted terminations. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric constant material and sealing compounds allows the termination to withstand voltages of 5 to 35kV.

Specifications

Details

Electrical Category:

Wire And Cable

Electrical Subcategory:

Cable Accessories

Electrical Subtype:

High Voltage Cable Termination Kit

Application:

Outdoor

Brand Name:

Brochure:

Manufacturer Brochure

Cable Type:

Tape Shield; UniShield(R); Wire Shield

Conductor Size:

1000 kcmil; 300 kcmil; 350 kcmil; 400 kcmil; 500 kcmil; 600 kcmil; 700 kcmil; 750 kcmil; 800 kcmil; 900 kcmil

Country Of Origin:

USA

Installation Link:

Installation Instructions

Lead Time:

21.000 DA

Length:

19.9600 IN

MsdsURL:

https://multimedia.3m.com/mws/mediawebserver?mwsId=SSSSSuUn_zu8l00xM829482Gmv70k17zHvu9lxtD7SSSSSS--

Number Of Terminals:

Order Minimum:

1.000 KT

Order Multiple:

1.000 KT

RoHS Compliance:

Under Review

Spec Sheet:

Spec Link

Tech Drawing Link:

Tech Drawing

Type:

QT-III

UNSPSC:

26121648

Voltage Rating:

15 kV; 25/28 kV; 5 kV; 8 kV

Weight:

0.200 L
