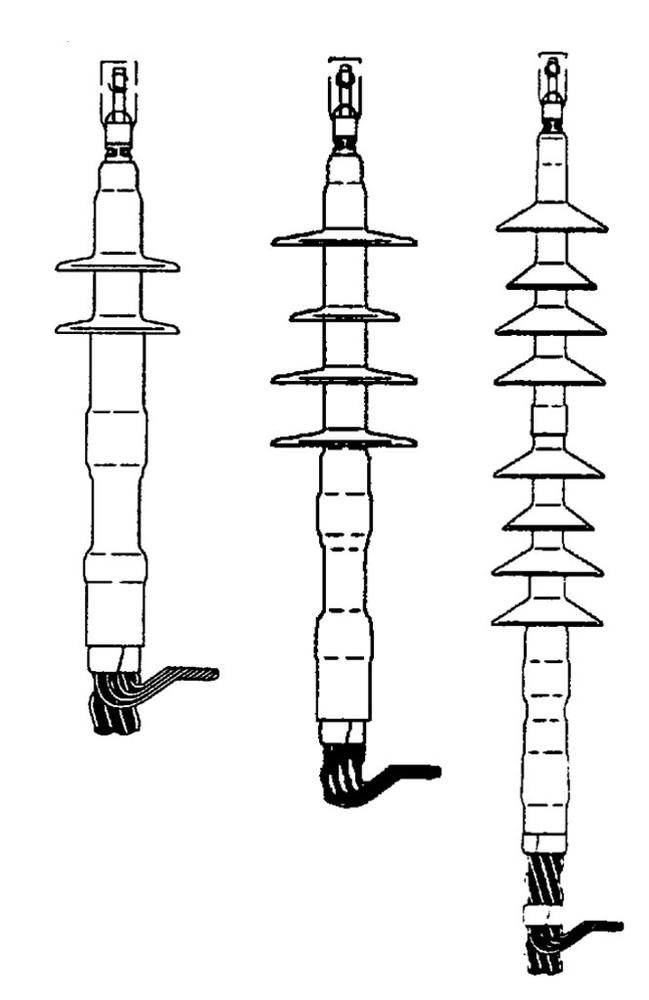

3M™ Cold Shrink QT III 7620 S, 7680 S & 7690 S Series Termination Kit includes three 1 piece, 3 phase, skirted terminations. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric constant material and silicone rubber insulation allows the termination to withstand voltages of 5 to 35kV.

Specifications

Details

Electrical Category:

Wire And Cable

Electrical Subcategory:

Cable Accessories

Electrical Subtype:

High Voltage Cable Termination Kit

Application:

Outdoor

Brand Name:

Cable Type:

Tape Shield; UniShield(R); Wire Shield

Conductor Size:

1000 kcmil; 1250 kcmil; 1500 kcmil; 1750 kcmil; 2000 kcmil; 700 kcmil; 750 kcmil; 800 kcmil; 900 kcmil

Country Of Origin:

USA

Lead Time:

2.000 DA

Length:

23.1000 IN

MsdsURL:

http://images.salsify.com/image/upload/s--HOYTYxDo--/mjav39nxu8ixhynawrx5.pdf

Number Of Terminals:

Order Minimum:

1.000 EA

Order Multiple:

1.000 EA

RoHS Compliance:

Under Review

Spec Sheet:

Spec Link

Standard:

IEEE

Stock Type:

Shelf Stock

Tech Drawing Link:

Tech Drawing

Type:

QT-III

UNSPSC:

26121648

Voltage Rating:

15 kV; 25/28 kV; 35 kV; 5 kV; 8 kV

Weight:

10.500 L
