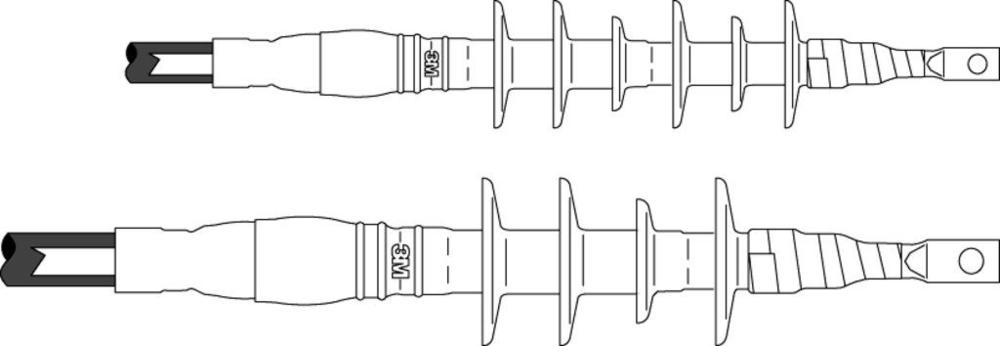

3M™ Cold Shrink QT III 7650 S HSG & 7660 S HSG Series Termination Kit includes a single phase, high fault current termination. It ensures a pliable, tight seal for tape shield, longitudinally corrugated shield and wire over tape shield power cables. The conjunction of high dielectric constant material and silicone sealing compounds allow the termination to withstand voltages of 5 to 35kV.

Specifications

Details

Electrical Category:

Wire And Cable

Electrical Subcategory:

Cable Accessories

Electrical Subtype:

High Voltage Cable Termination Kit

Application:

Outdoor

Brand Name:

Brochure:

Manufacturer Brochure

Cable Type:

Longitudinally Corrugated (LC); Tape Shield; Wire-Over-Tape Shield

Conductor Size:

1 AWG; 1/0 AWG; 2 AWG; 2/0 AWG; 250 kcmil; 3/0 AWG; 300 kcmil; 350 kcmil; 4/0 AWG; 400 kcmil; 500 kcmil; 600 kcmil; 700 kcmil; 750 kcmil

Country Of Origin:

USA

Installation Link:

Installation Instructions

Lead Time:

21.000 DA

Length:

21.5000 IN

MsdsURL:

http://images.salsify.com/image/upload/s--X129_8df--/aolzknvxtz6novjgv58r.pdf

Number Of Terminals:

Order Minimum:

1.000 KT

Order Multiple:

1.000 KT

RoHS Compliance:

Under Review

Spec Sheet:

Spec Link

Standard:

IEEE

Tech Drawing Link:

Tech Drawing

Type:

QT-III

UNSPSC:

26121648

Voltage Rating:

15 kV; 25/28 kV; 35 kV; 5 kV; 8 kV

Weight:

2.300 L
