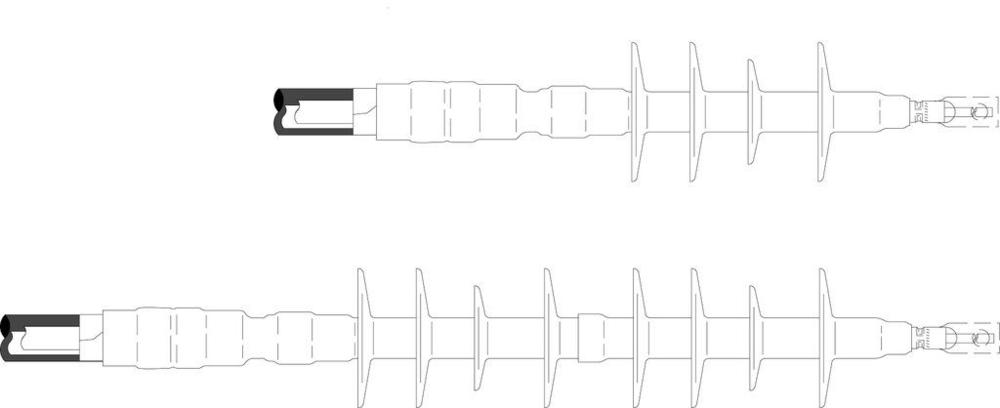

3M™ Cold Shrink QT III 7650 S HSG & 7660 S HSG Series Termination Kit includes a single phase, high fault current termination. It ensures a pliable, tight seal for tape shield, longitudinally corrugated shield and wire over tape shield power cables. The conjunction of high dielectric constant material and silicone sealing compounds allow the termination to withstand voltages of 5 to 35kV.

Specifications

Details

Electrical Category:

Wire And Cable

Electrical Subcategory:

Cable Accessories

Electrical Subtype:

High Voltage Cable Termination Kit

Application:

Outdoor

Brand Name:

Brochure:

Manufacturer Brochure

Cable Type:

Longitudinally Corrugated (LC); Tape Shield; Wire-Over-Tape Shield

Conductor Size:

1000 kcmil; 1250 kcmil; 1500 kcmil; 1750 kcmil; 2000 kcmil; 900 kcmil

Country Of Origin:

USA

Lead Time:

14.000 DA

Length:

20.1300 IN

MsdsURL:

http://images.salsify.com/image/upload/s--2_X6e-xn--/ykvw4epwylpzoskydael.pdf

Number Of Terminals:

Order Minimum:

1.000 KT

Order Multiple:

1.000 KT

RoHS Compliance:

Under Review

Spec Sheet:

Spec Link

Type:

QT-III

UNSPSC:

26121648

Voltage Rating:

15 kV; 25/28 kV; 5 kV; 8 kV

Weight:

3.600 L
