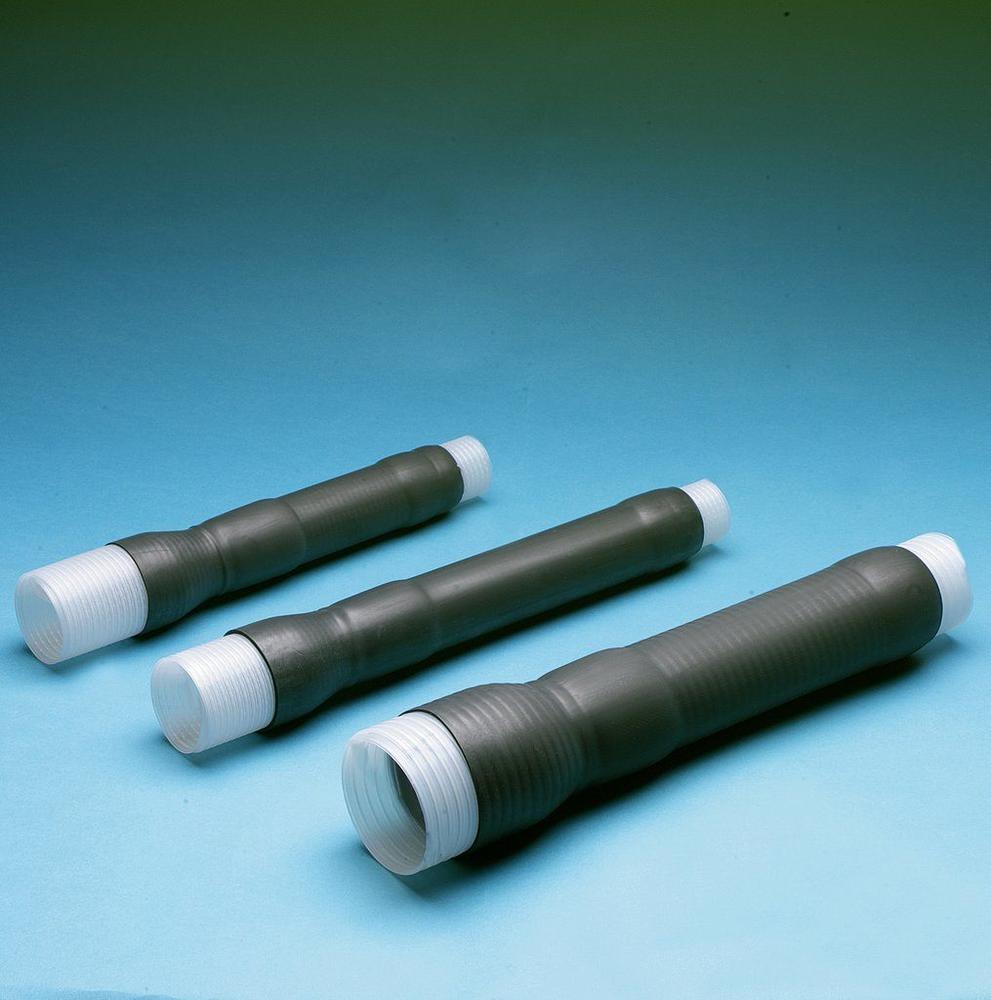

3M™ Cold Shrink QT II 6020K Series Termination Kit includes 3 non skirted terminations. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric constant material and silicone rubber insulation allows the termination to withstand voltages of 15 to 25/28 kV.

Specifications

Details

Electrical Category:

Wire And Cable

Electrical Subcategory:

Cable Accessories

Electrical Subtype:

High Voltage Cable Termination Kit

Application:

Indoor

Brand Name:

Cable Type:

Tape Shield; UniShield(R); Wire Shield

Conductor Size:

250 kcmil; 300 kcmil; 350 kcmil; 400 kcmil; 500 kcmil; 600 kcmil; 700 kcmil; 750 kcmil

Country Of Origin:

USA

Lead Time:

28.000 DA

Length:

15.3000 IN

MsdsURL:

http://images.salsify.com/image/upload/s--bljLUeuF--/bojue6617bbh2yjh0bec.pdf

Number Of Terminals:

Order Minimum:

1.000 KT

Order Multiple:

1.000 KT

RoHS Compliance:

Under Review

Spec Sheet:

Spec Link

Standard:

IEEE

Type:

QT-II

UNSPSC:

26121648

Voltage Rating:

15 kV; 25/28 kV

Weight:

3.900 L
