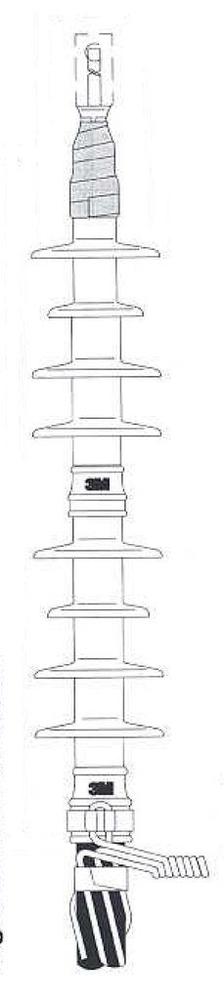

3M™ Cold Shrink QT II 5600 & 5680 Series Termination Kit includes a 4 skirt, 1 piece termination. It ensures a pliable, tight seal for concentric neutral cables. The conjunction of high dielectric constant material and silicone rubber insulation allows the termination to withstand voltages of 5 to 15kV.

Specifications

Details

Electrical Category:

Wire And Cable

Electrical Subcategory:

Cable Accessories

Electrical Subtype:

High Voltage Cable Termination Kit

Application:

Outdoor

Brand Name:

Cable Type:

Concentric Neutral (CN)

Conductor Size:

1 AWG; 1/0 AWG; 2 AWG; 2/0 AWG; 250 kcmil; 3 AWG; 3/0 AWG; 300 kcmil; 350 kcmil; 4/0 AWG; 400 kcmil; 500 kcmil; 600 kcmil; 750 kcmil

Country Of Origin:

USA

Installation Link:

Installation Instructions

Lead Time:

2.000 DA

Length:

21.5000 IN

MsdsURL:

http://images.salsify.com/image/upload/s--UvyT1KNU--/rhzebpxexd7rqhyhlbun.pdf

Number Of Terminals:

Order Minimum:

1.000 KT

Order Multiple:

1.000 KT

RoHS Compliance:

Under Review

Spec Sheet:

Spec Link

Standard:

IEEE

Stock Type:

Shelf Stock

Tech Drawing Link:

Tech Drawing

Type:

QT-II

UNSPSC:

26121648

Voltage Rating:

15 kV; 25/28 kV; 35 kV; 5 kV; 8 kV

Weight:

1.200 L
